The Kickstarter campaign will be launched on 21st february

Project

LAB-BOX is the first modular daylight-loading tank that can be used everywhere, with both 135 and 120 film format.

+
Adjustable Film Guide
+
Multiformat Reel
+
Rotary Knob
+
Backing Paper Split
+
120 Film Chamber Knob
+
Cutting Lever
+
Cutting Knife Guide

Project

LAB-BOX is the first modular daylight-loading tank that can be used everywhere, with both 135 and 120 film format.

+
Multiformat Reel
+
Adjustable Film Guide
+
Rotary Knob

+
Cutting Knife Guide
+
Cutting Lever

+
Backing Paper Split
+
120 Film Chamber Knob

Project

LAB-BOX is the first modular daylight-loading tank that can be used everywhere, with both 135 and 120 film format.

+
Multiformat Reel
+
Adjustable Film Guide
+
Rotary Knob

+
Cutting Knife Guide
+
Cutting Lever

+
Backing Paper Split
+
120 Film Chamber Knob

features

Frontpage  Pre-Order

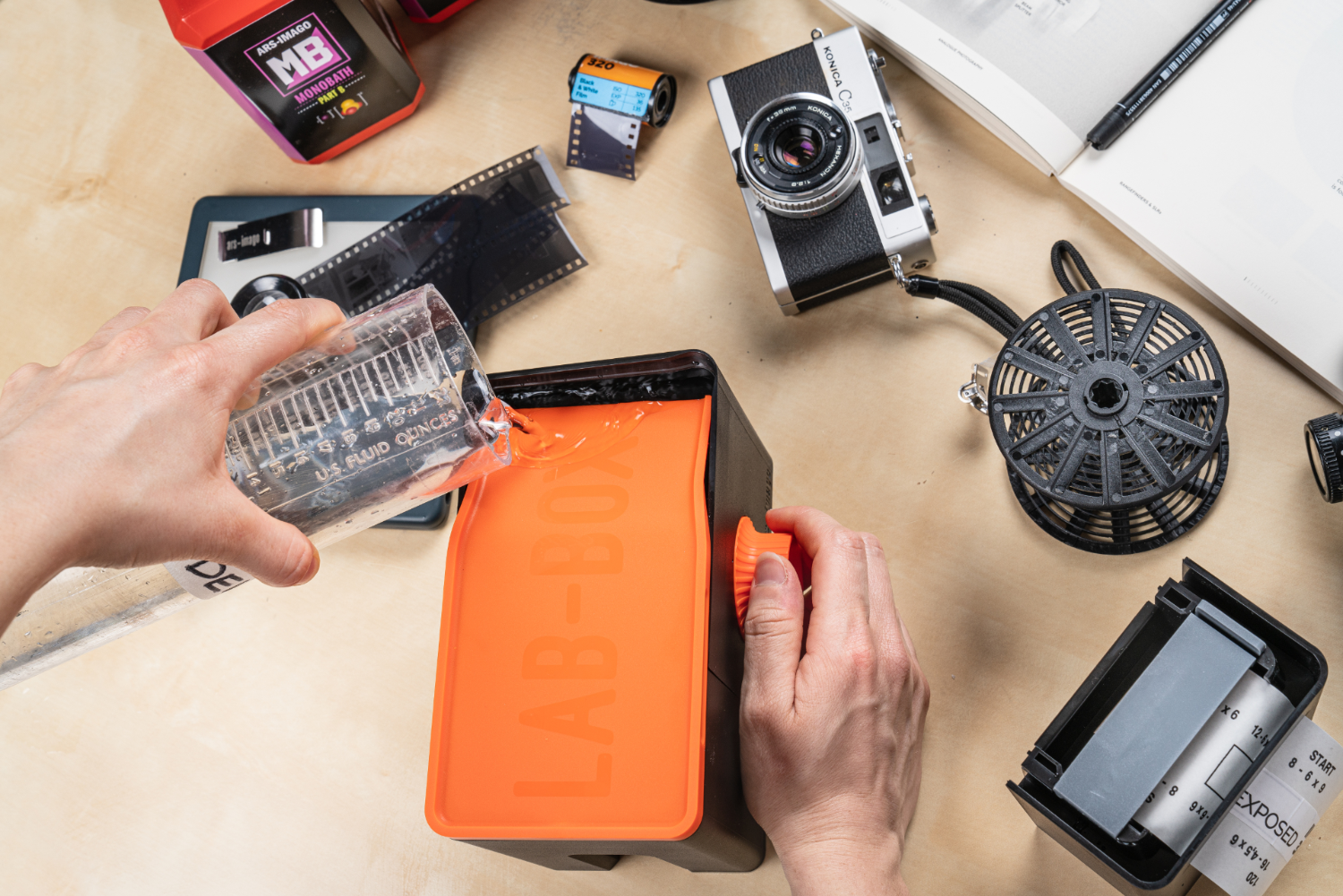

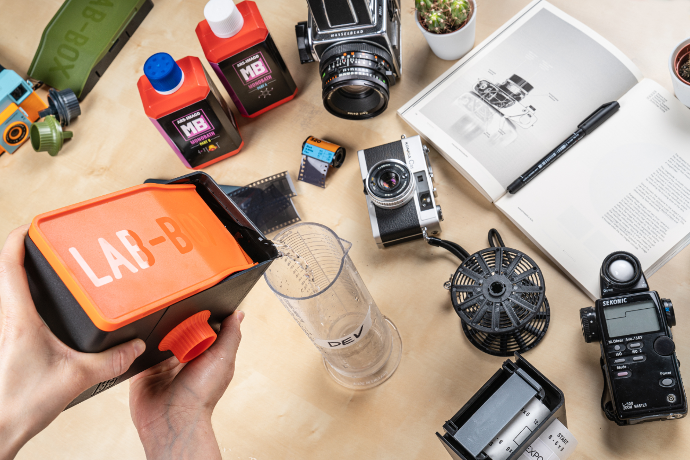

DAY-LIGHT

LAB-BOX allows to develop film from start to end in full day-light, bypassing the need for a darkroom.

Frontpage  Pre-Order

MULTI-FORMAT

LAB-BOX has two interchangeable modules and an adjustable spiral to be used for both 135 and 120 films.

Frontpage  Pre-Order

QUICK & EASY

LAB-BOX is the fastest
and the easiest way to develop film rolls,
anywhere and at anytime.

striscia_moduli-383

Made for

Frontpage  Pre-Order

Students

LAB-BOX is also a great tool for teachers and students of photography schools, to develop film rolls as a group or in class.

Frontpage  Pre-Order

Photographers

LAB-BOX is an indispensable tool for anyone approaching analogue photography, wishing to begin developing their own films.

Frontpage  Pre-Order

Travellers

LAB-BOX is the perfect travel companion for photographers who want to develop and check photos while on the go.

rendering_top_v2

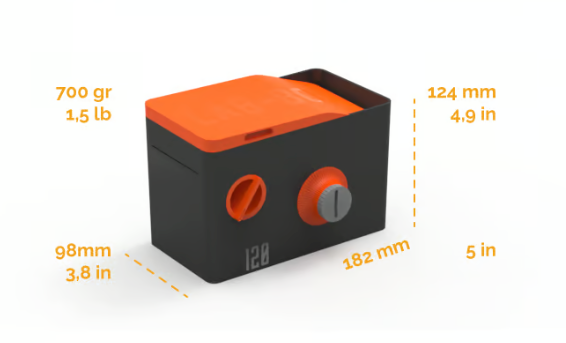

Specs



  • Dimension: 182 x 124 x 98 mm
  • Weight: 700g
  • Material: ABS, Stainless steel

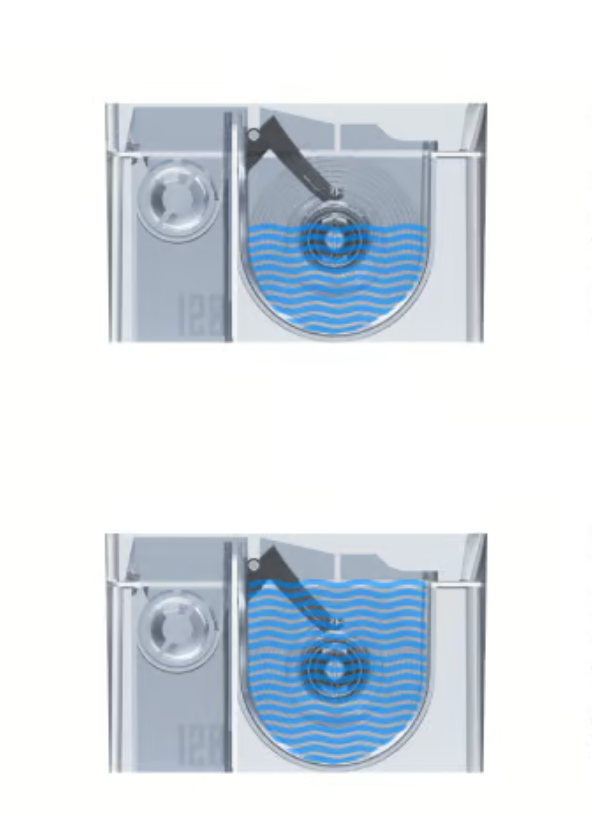

  • Tank capacity: 270 – 500 ml
  • Made and assembled in Italy

Lab box

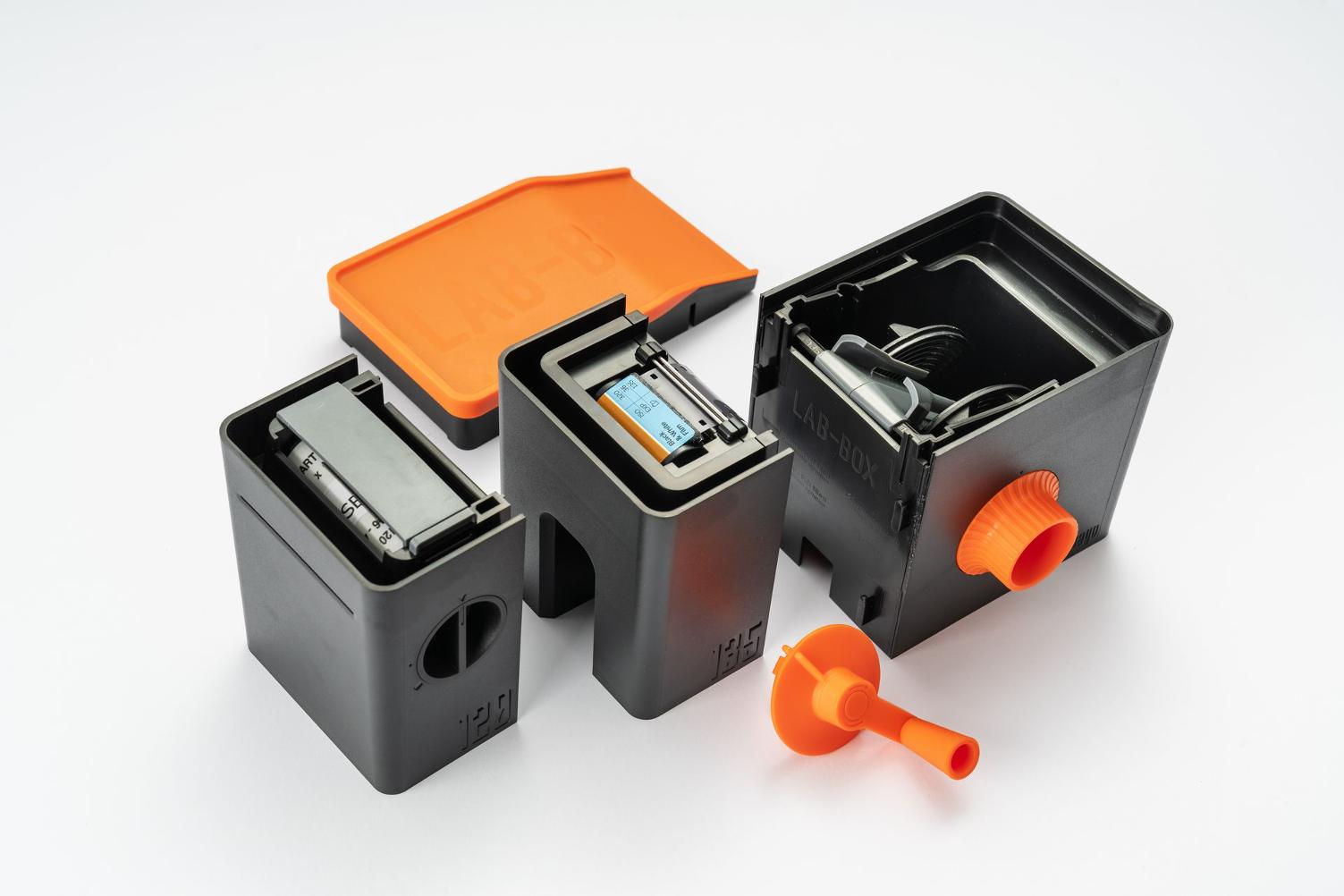

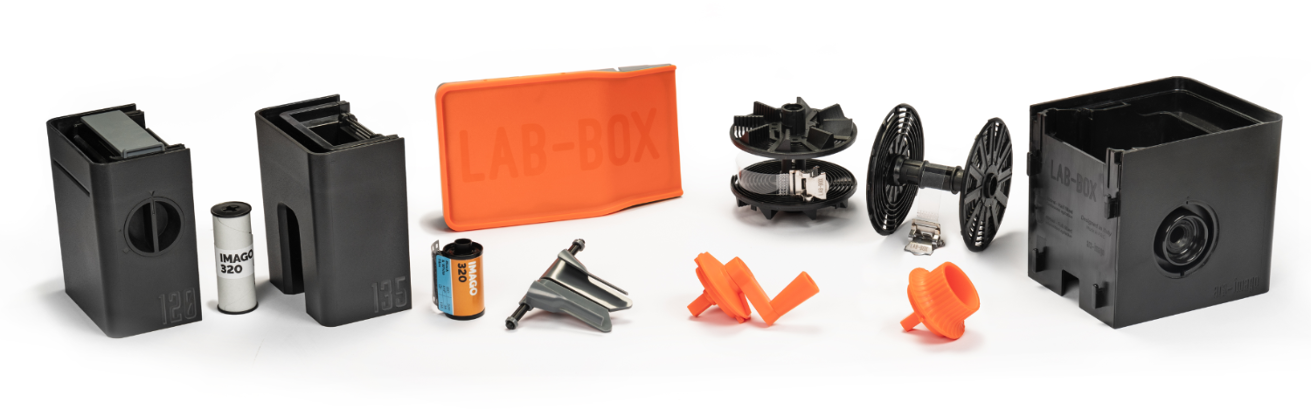

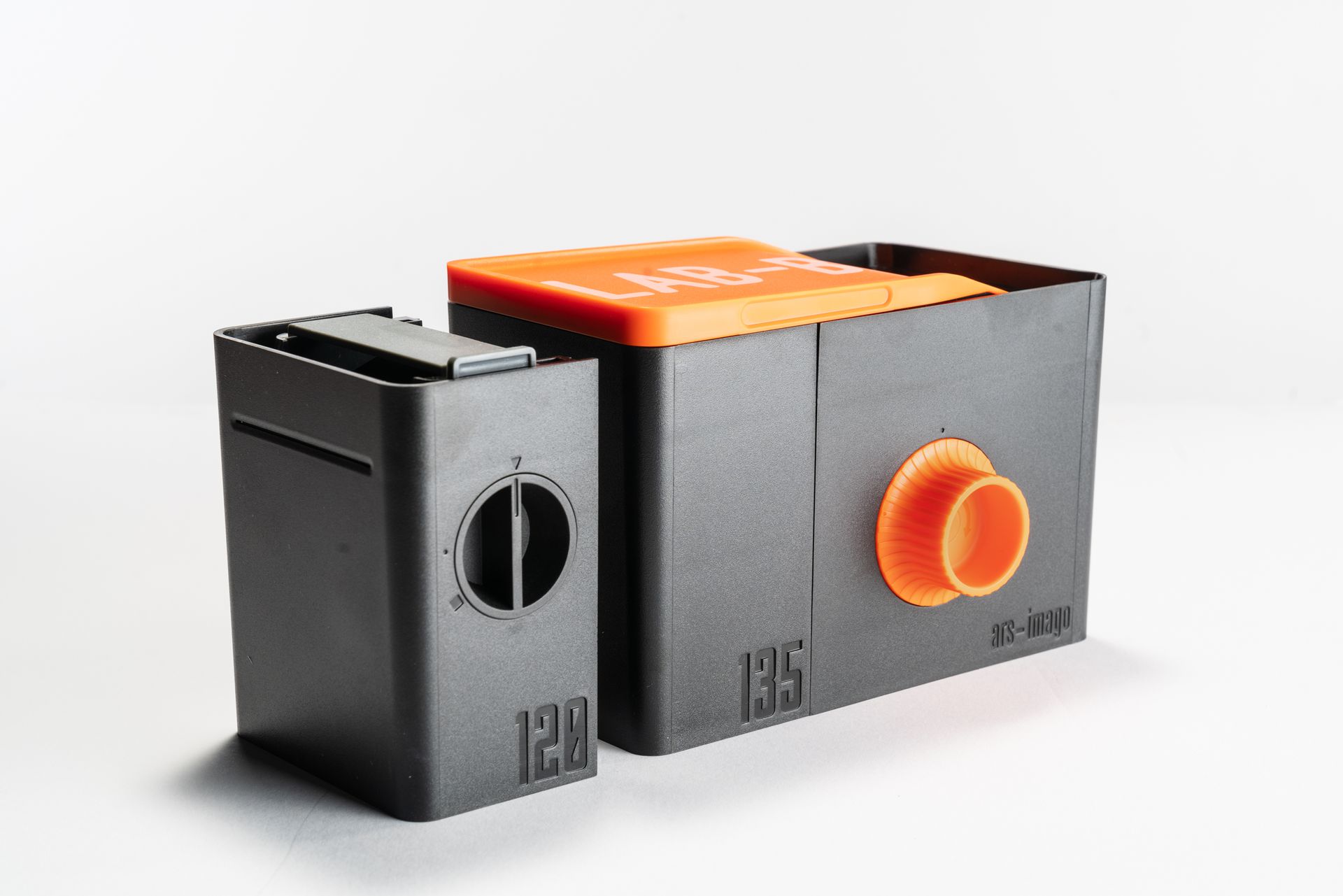

Modules

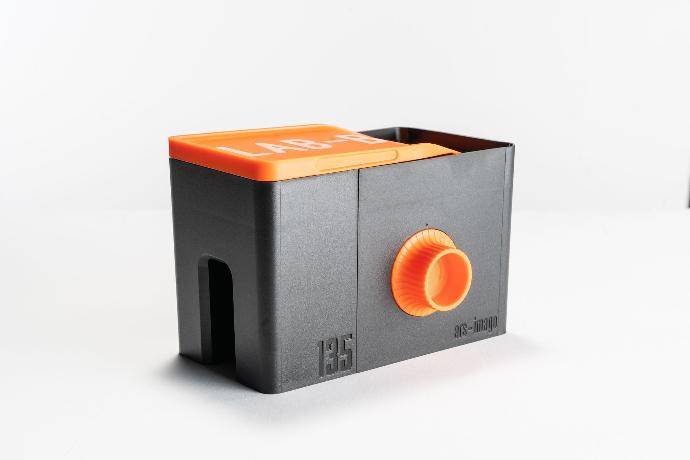

Module 135- Lab-Box

135 Module

Module for 35mm films.
The slot holds the roll, which is clipped to the reel.
The orange lever activates a knife which cuts
the film, separating it from the cartridge.

Module 120 - Lab-Box

120 Module

Module for medium format films.
The backing paper is separated from the film
by pulling it out through the rear split.
The film is loaded in the lower
slot and clipped to the reel.

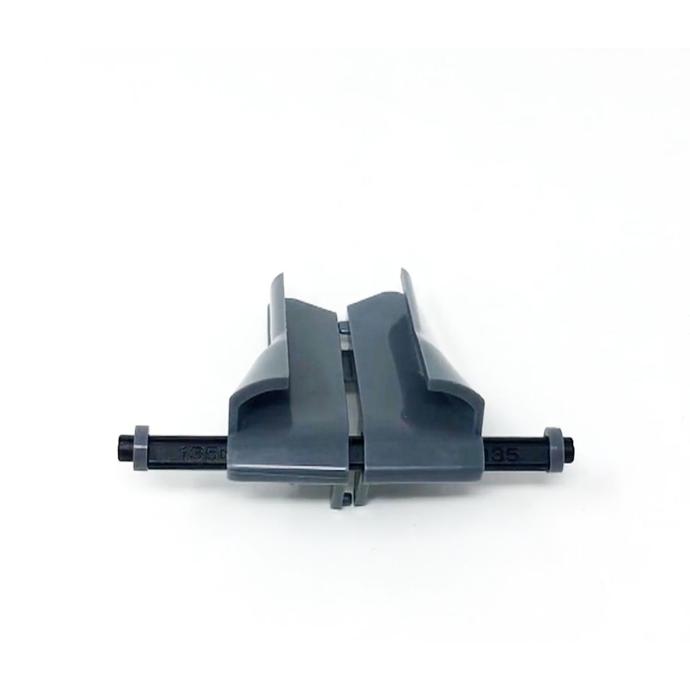

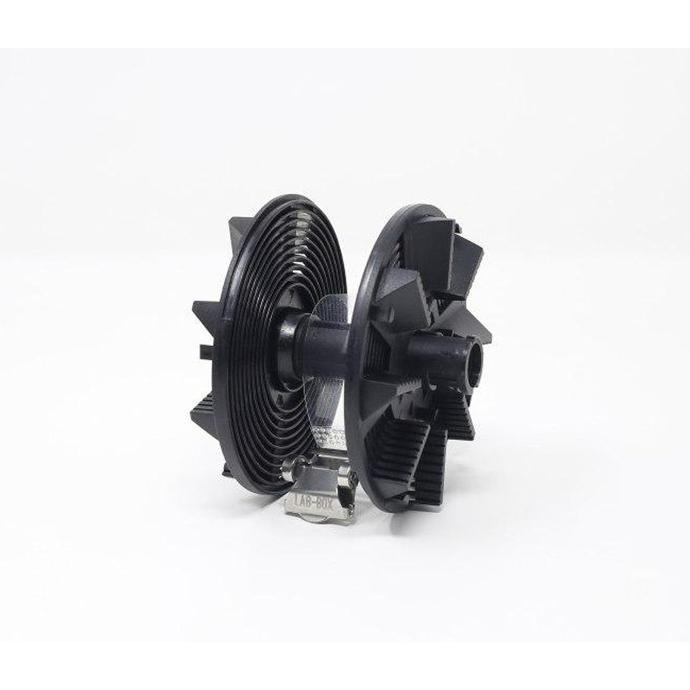

Multiformat Reel - Lab-Box

Film guide and reel

The film guide and the reel can be adjusted
according to the film type.
The clip is hooked to the film.
The outer knob winds the film onto the reel.

Team

Lab-Box is a project by ars-imago.
We have worked with analog photography for many years and our mission is to keep it alive encouraging everybody to enjoy film photography.

timeline

Here’s a roadmap of our product to highlight the milestones from the initial phase to delivery and future updates.

IDEA
September 2015

Research and Development

January 2016

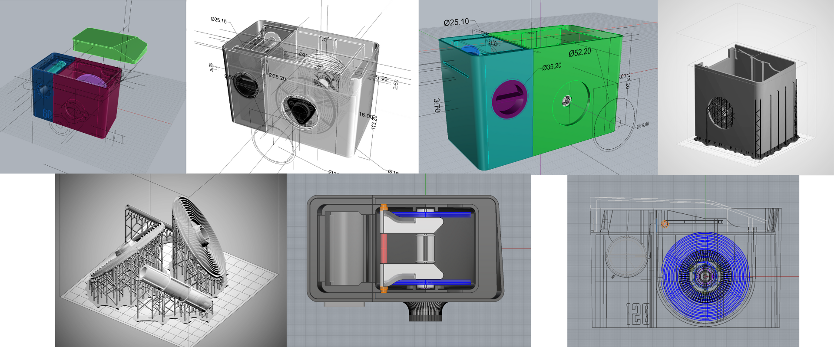

First sketches and modelling

June 2016

3D Prototype & Testing

August 2016

3D-printing the final prototype

September 2016

Preview at Photokina 2016

October 2016

Preview at Make Faire 2016

November 2016

Preparing Kickstarter campaign

NOW
February 2017

KICKSTARTER CAMPAIGN LAUNCH

July 2017

Testing Pre-Production Samples

August 2017

Mass Production

September 2017

Delivery First Batch
